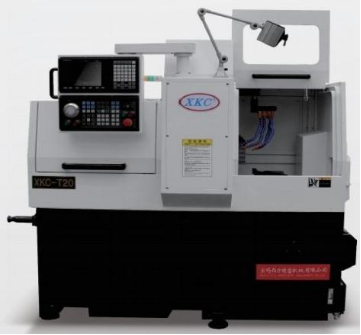

T20
Series Precision Swiss Type Lathe
★T20 series precision swiss type lathe with highprecision high speed machine tool performance, side-by-side with two shaft and tool configuration control knife rest arrangement structure, the rest partadopts the unique high rigid design which can realize full depth of processing high rigidity. This series of Z axis line of the machine tool can reach 245mm,more long pieces can decrease thetimes of feeding improve processing efficiency. For most of the partswithin245mm length canbefinished in feeding partsprocessing.
★The series of machine tools with high speed precision synchronous guide bushing, the workpiece endface processing function, lateral drlling, tapping, milling slot, eccentric hole processing function of power tool function module, Y axis of super-long stroke can be combinedaccording to th customer needs to customize a variety of flexible toolfunction. Configure automatic feeder, feedingdevice ,continuous processingand high precision. Morevolumecomplex shapeprecision composite processing of shaft parts.
MACHINE SPECIFICATION PARAMETERS
項目ITEM | T20 | |
加工能力 Capacity | 最大夾持棒料 Max spindle hole diameter | φ3-φ20mm |
最大加工長度 Max turning length | 旋轉導套：245mm rotation guide bushing 無導套：45mm No guide bushing | |
主軸最大鉆孔直徑 Max spindle drilling diameter | φ10mm | |
主軸最大攻絲直徑 Max spindle tapping diameter | M10 | |
動力頭最大鉆孔直徑 Max power tool drilling diameter | Φ6mm | |
動力頭最大攻絲直徑 Max power tapping diameter | M5 | |
主軸 Spindle | 最高回轉速度 Max spindle speed | 6000r/min |
主軸通孔直徑 Spindlebore dia | φ23mm | |
中心高度 Center height | 1000mm | |
主軸功率 Spindle power | 3 KW | |

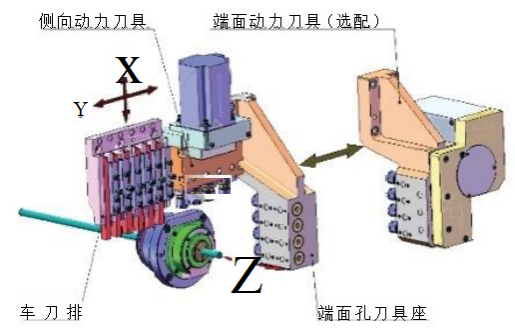

刀具配置 Tool specs | 刀具數量 Number of tool | 14(17)把 |
車削刀具 Turning tool | 6*φ12x150mm | |
端面鉆孔刀具 Facing tool | 4*ER16 | |
側向動力刀具 Side power tool | 4*ER16 | |
端面動力刀具(選配) Face power tool (optional) | 3*ER16(動力)+4*ER16(端面孔) | |
動力刀具最高轉速 Max speed of power tool | 5500rpm | |
動力頭電機功率 Motor power of power tool | 0.75Kw | |
行程/進給 Travel/Axes
| 控制軸數 Numberof axis | X、Y、Z 3軸 |
快移速度 Rapid move speed | X軸：15m/min Y軸、Z軸：18m/min | |
電機功率(X、Y、Z) Motor power (X、Y、Z) | 0.75KW | |
其它 Others | 機床尺寸(長×寬×高) Floor Space | 1840*1240*1740mm |
機床重量 Mass of machine | 約 2200kg about 2200kg | |
